TG series: three way globe control valves

Rating table

SIZES*1’’ up to 12’’ [DN25 up to DN300]
PRESSURE RATINGS*ASME B16.34 #150 up to #600 [PN 20 up to PN 100]
DESIGN TEMPERATURES*-196°C up to 565°C [-320°F up to 1049 °F]
*Standard codes of reference: ISA 75 / IEC60534 general design code, tests and inspection ASME B16.34 / EN 12516 strength design code

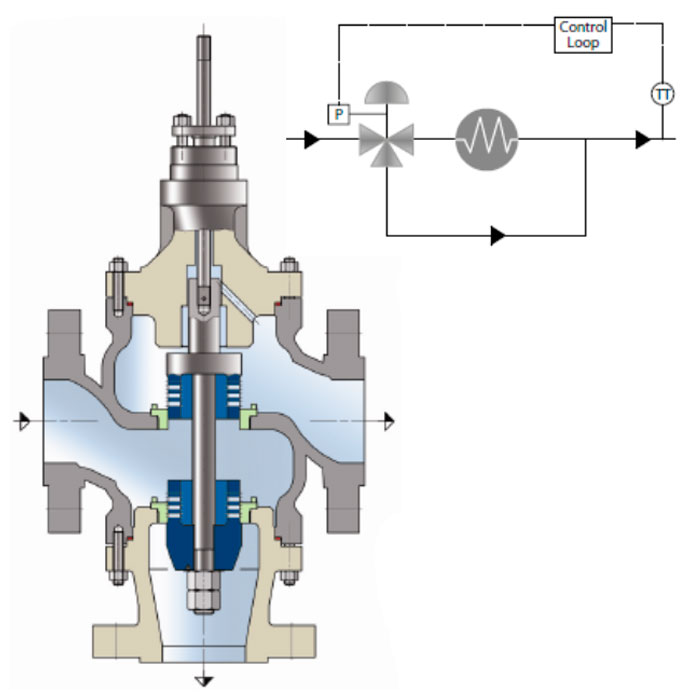

TG1 series 3-way diverting control valve used before heat exchanger


TG2 series 3-way mixing control valve generally used after heat exchanger

Connection table

END CONNECTIONS: ASME B16.5 for FLANGED version* ASME B16.11 for BW and SW version* #150 up to #2500Valve size: 1’’ up to2’’ [DN25] up to [DN50]Valve size: 3’’ up to 12’’ [DN 80 up to DN300]
RAISED FACE RF
RING JOINT RJ
BUTT WELD
SOCKET WELD
THREADED ENDS

* Standard codes of reference:
ISA 75 / IEC60534-3 end to end dimensions
MSS SP-6 surface finishing

Perfornamce table

FLOW COEFFICIENT CV RANGEABILITYCV UP to 1200 according to ISA 75 / IEC 60534-2
SEAT LEAKAGEUp to class VI according to ANSI/FCI 70-2 and IEC 60534-4
FUGITIVE EMISSION CONTROLUp to class A according to ISO 15848-1
OPERATING PERFORMANCESaccording to ANSI/ISA 75-25 and IEC 60534-4
