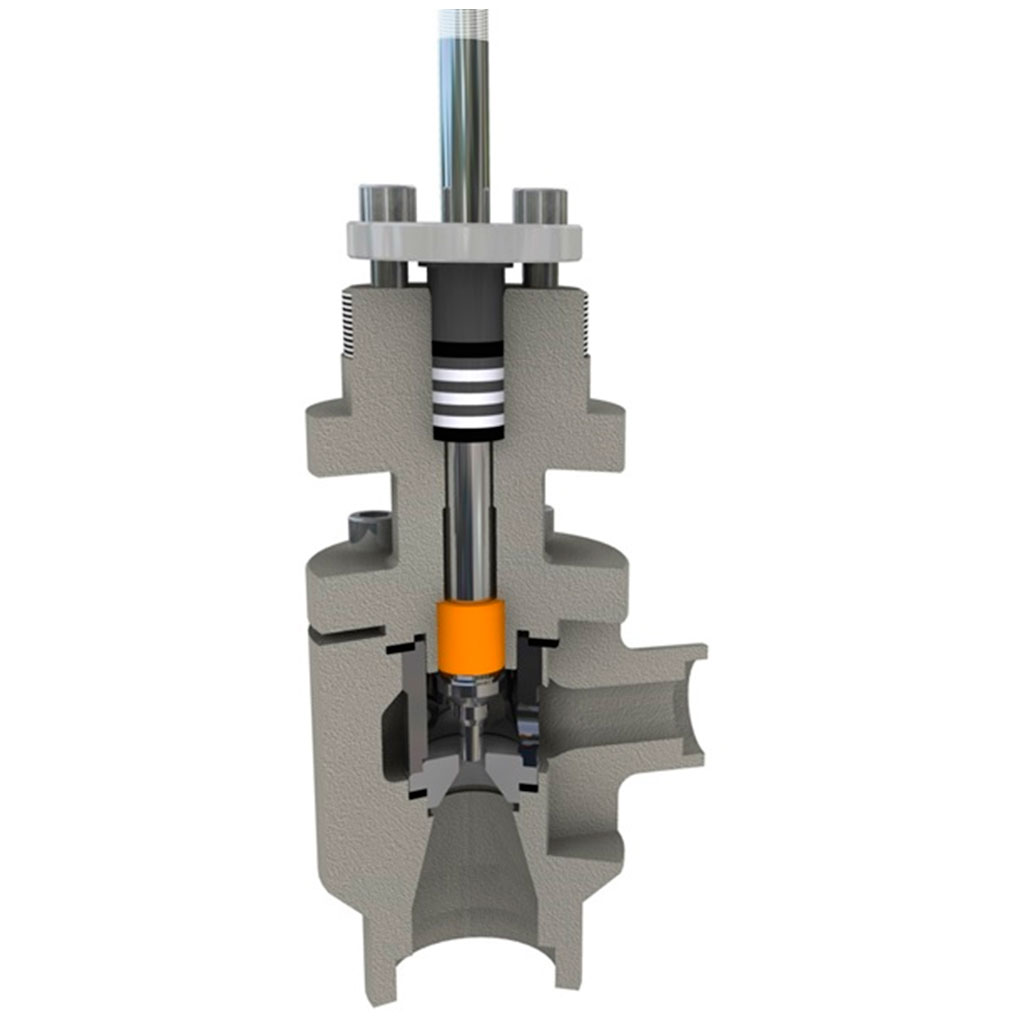

AG series: Angle globe control valves

AG2 and AG3 series: top guided and cage guided

Used in special application or where layout constraints don’t allow the use of a straight line globe valve.
Main applications are:

  • Choke valves
  • Erosive service
  • Flashing service
    (in this case flow to close configuration)

Many option:

  • Metal seat
  • Multistages trim in hard material (solid tungsten carbide)
  • Low emission packing, fugitive emission compliant
  • Exotic materials

Rating table

SIZES1’’ up to 10’’ [DN25 up to DN300]
PRESSURE RATINGSASME B16.34 up to #4500 API up to 10000
END CONNECTIONSACCORDING TO ASME/API
DESIGN TEMPERATURES-196°C up to 565°C [-320°F up to 1049 °F]

effetto-luminosita effetto-zoom

Performance table

FLOW COEFFICIENT CV RANGEABILITYCV 10 to 300 according to ISA 75 / IEC 60534-2
SEAT LEAKAGEBetter than class V according to ANSI/FCI 70-2 and IEC 60534-4
NOISE AND CAVITATION CONTROLaccording to ISA 75 series and IEC 60534-8
FUGITIVE EMISSION CONTROLUp to class A according to ISO 15848-1
OPERATING PERFORMANCESaccording to API / ANSI-ISA 75-25 , IEC 60534-4
